Screen Door Latch Set
$159.00
Unit price
/
per
SKU:BM-8501-C3NL

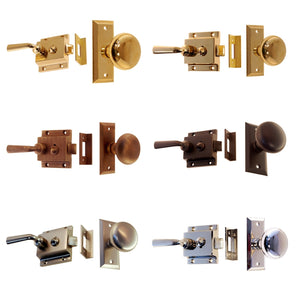

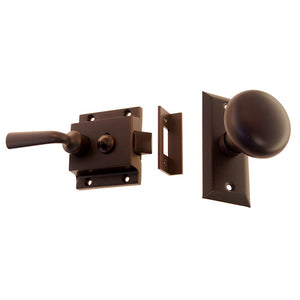

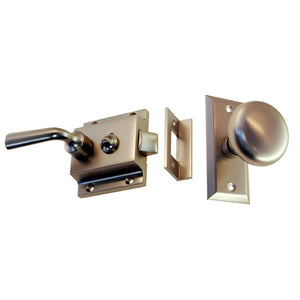

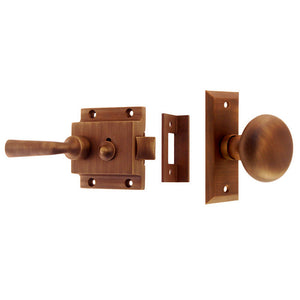

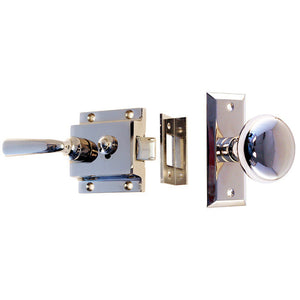

Complete screen door latch set with lever on the inside and knob on the outside. Button can lock latch in either position. Comes with reverse bevel and an angle strike. Bevel is reversible. Works on both right and left-handed doors.
Material: solid brass
Dimensions:
> Case: 2″ x 2-¼″ x ⅝″
> Lever: 1-¾″ long, 2″ projection
> Knob: 1-¾″ dia., 2″ projection
> Door plate: 1-⅜″ x 3″
> Angle strike: 1-¾″ long, 7⁄16″ wide, 13/16″ high
> Steel spindle: 3-½" long, 9/32″ (7mm) wide, ⅜″-20 thread
> Backset: 1-9/16"
> For door thickness from ⅞" to 1-¾"
See BM-8502 for optional surface-mounted strike/catch (sold separately)

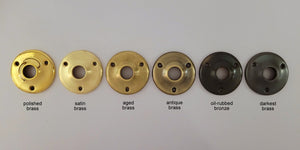

Custom finishes available, including live/organic finishes which will develop a natural patina over time (priced upon request).
Please contact us for current availability (prices subject to change).
Complete screen door latch set with lever on the inside and knob on the outside. Button can lock latch in either position. Comes with reverse bevel and an angle strike. Bevel is reversible. Works on both right and left-handed doors.
Material: solid brass
Dimensions:
> Case: 2″ x 2-¼″ x ⅝″
> Lever: 1-¾″ long, 2″ projection
> Knob: 1-¾″ dia., 2″ projection
> Door plate: 1-⅜″ x 3″
> Angle strike: 1-¾″ long, 7⁄16″ wide, 13/16″ high
> Steel spindle: 3-½" long, 9/32″ (7mm) wide, ⅜″-20 thread
> Backset: 1-9/16"
> For door thickness from ⅞" to 1-¾"
See BM-8502 for optional surface-mounted strike/catch (sold separately)
Custom finishes available, including live/organic finishes which will develop a natural patina over time (priced upon request).
